Check out this video of the ALL-NEW Brine Master®️ in action

Brine Master®
Brine Master®

Brine Master®

$9,330.00$29,090.00

The manufacturer’s suggested retail price (MSRP) is subject to change. MSRP also excludes freight and tax. Dealer prices may vary.

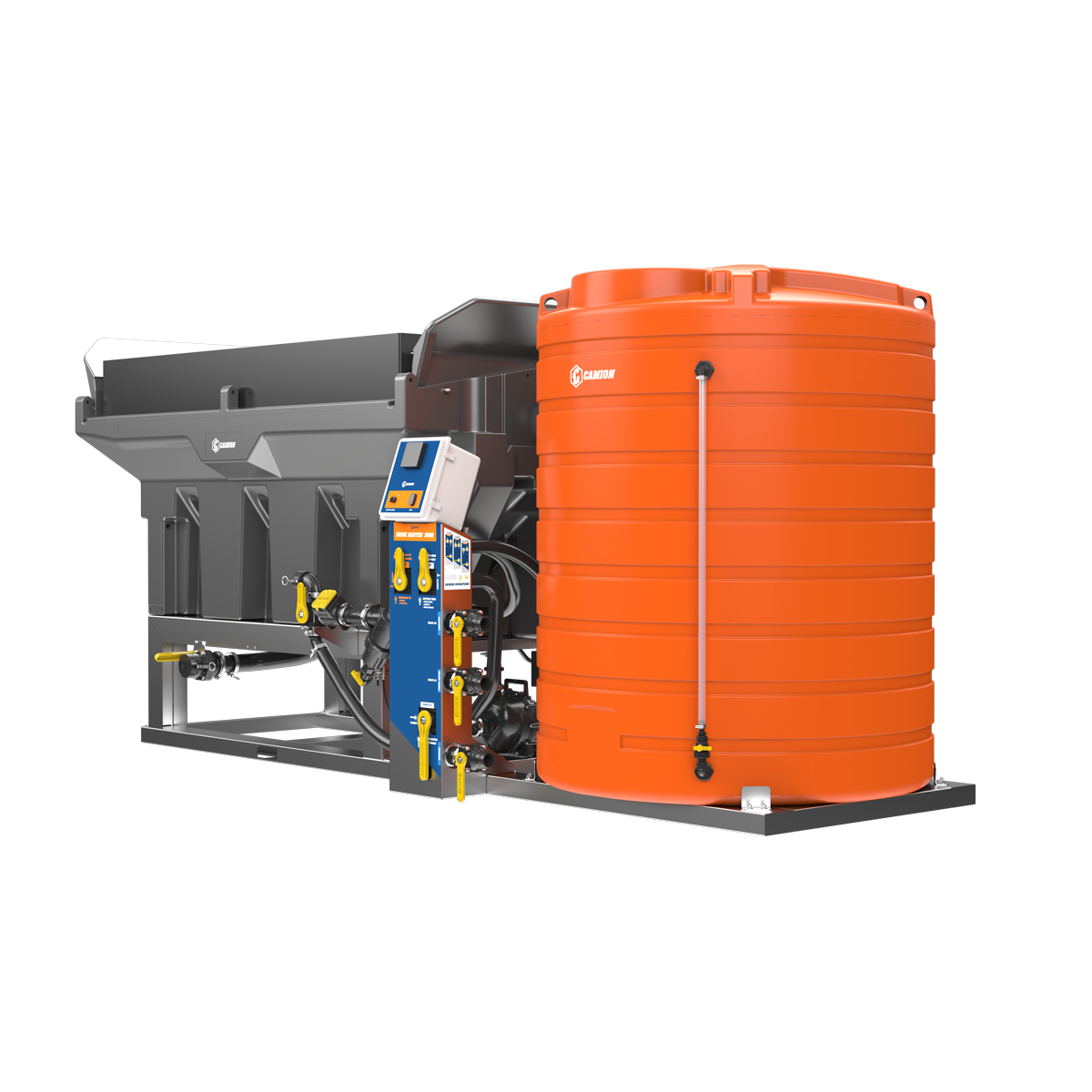

The Brine Master®️ is over-built, plug n play, and built around a straightforward workflow. An “all-in-one” premium brine making machine at an affordable price, that comes pre-wired to approved standards with complete electronics. This unit comes in two sizes, both featuring our iconic poly and stainless steel construction.

Specifications

Brine Master®

Product CodeIMSBM3000
Approx. Weight (Empty)1,000 lbs
Length181"
Height82"
Width65"
Mixing Tank Capacity600
Hopper Volume2 cu yard
Brine Production CapacityUp to 2600 gal/hour
Inlet Flow RateUp to 120 gal/min
Electrical Connection230-volt, 30 amp
Frame ConstructionStainless Steel
HopperOne-piece HDPE grey poly
Mixing TankOne-piece HDPE grey poly

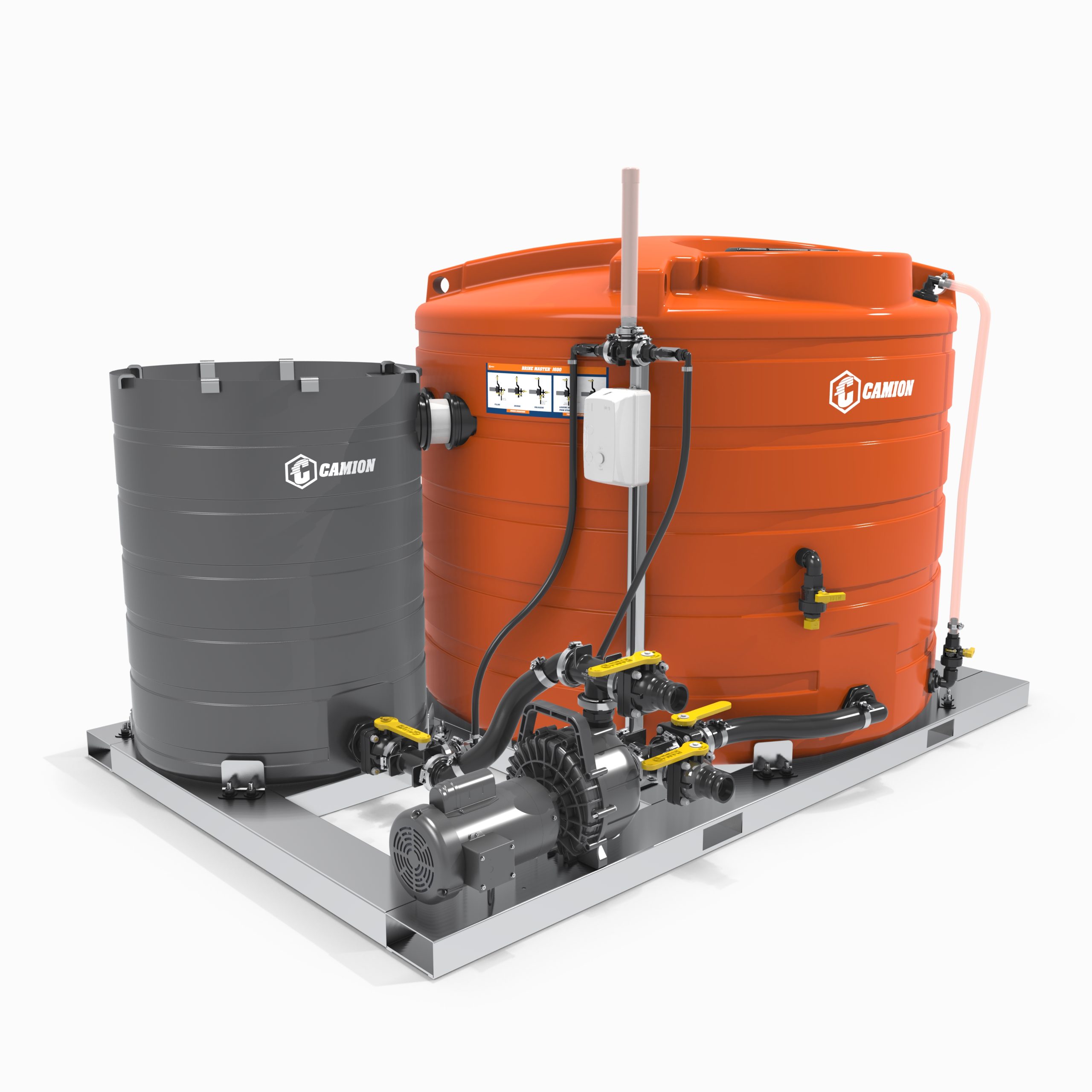

Product CodeIMSBM1600
Approx. Weight (Empty)520 lbs
Length90"
Height72"
Width68"
Mixing Tank Capacity400
Hopper Volume.5 cu yard
Brine Production CapacityUp to 1600 gal/hour
Inlet Flow RateUp to 110 gal/min
Electrical Connection115-volt, 20 amp
Frame ConstructionStainless Steel
HopperOne-piece HDPE grey poly
Mixing TankOne-piece HDPE grey poly

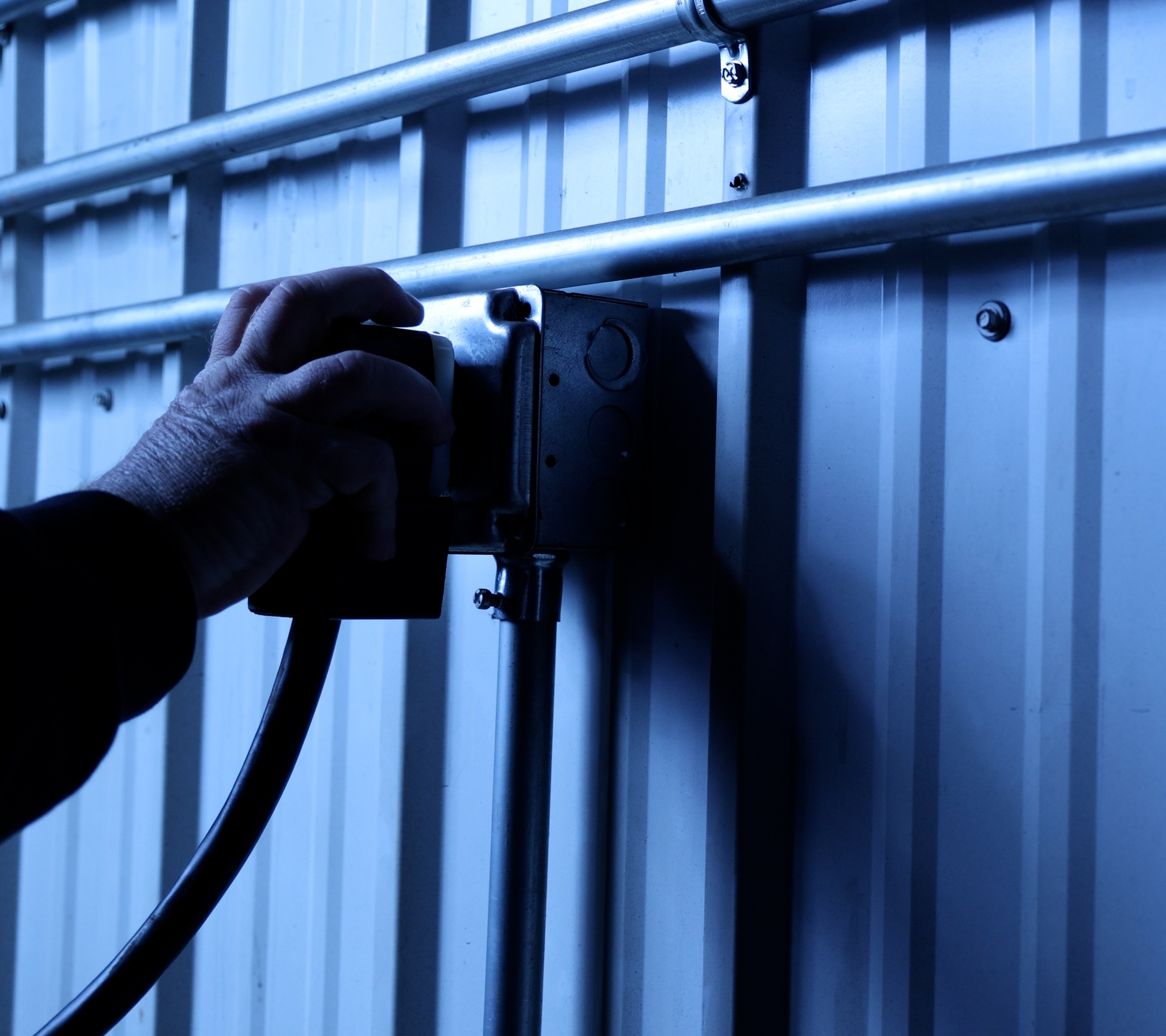

PLUG-N-PLAY ELECTRONICS

Simple electronics, pre-wired to approved standards make it easy for you to hook up your unit and start making brine immediately.

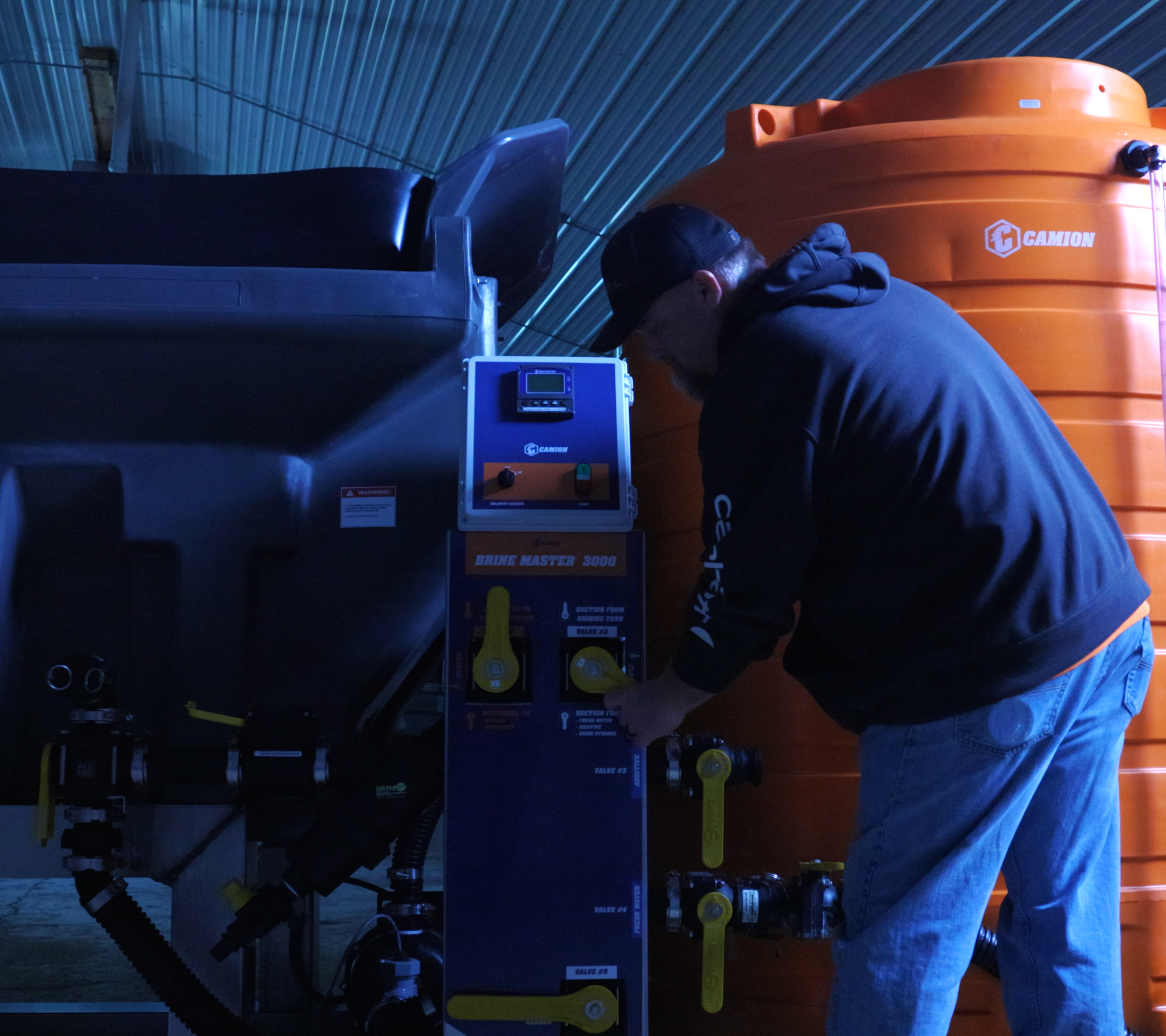

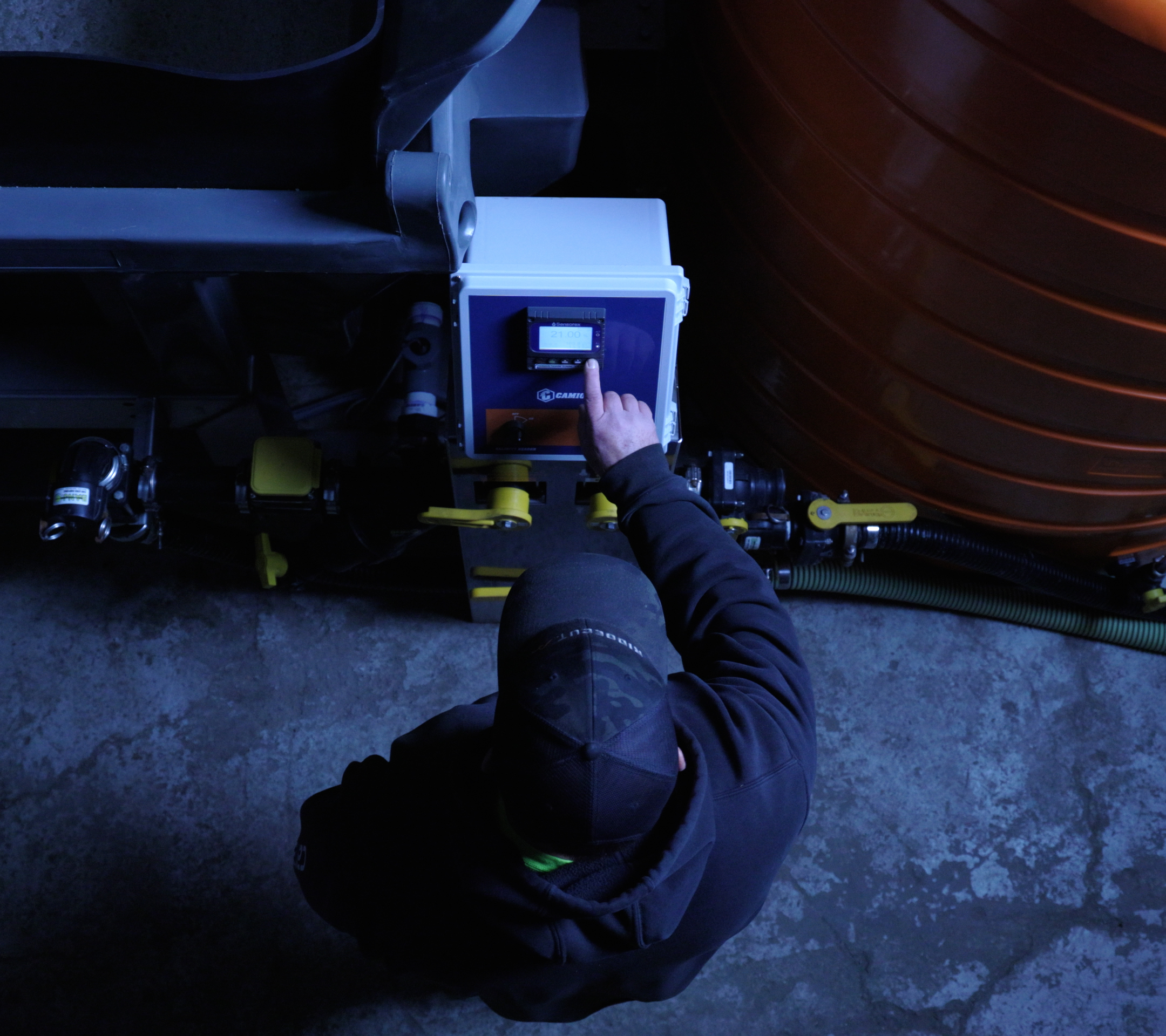

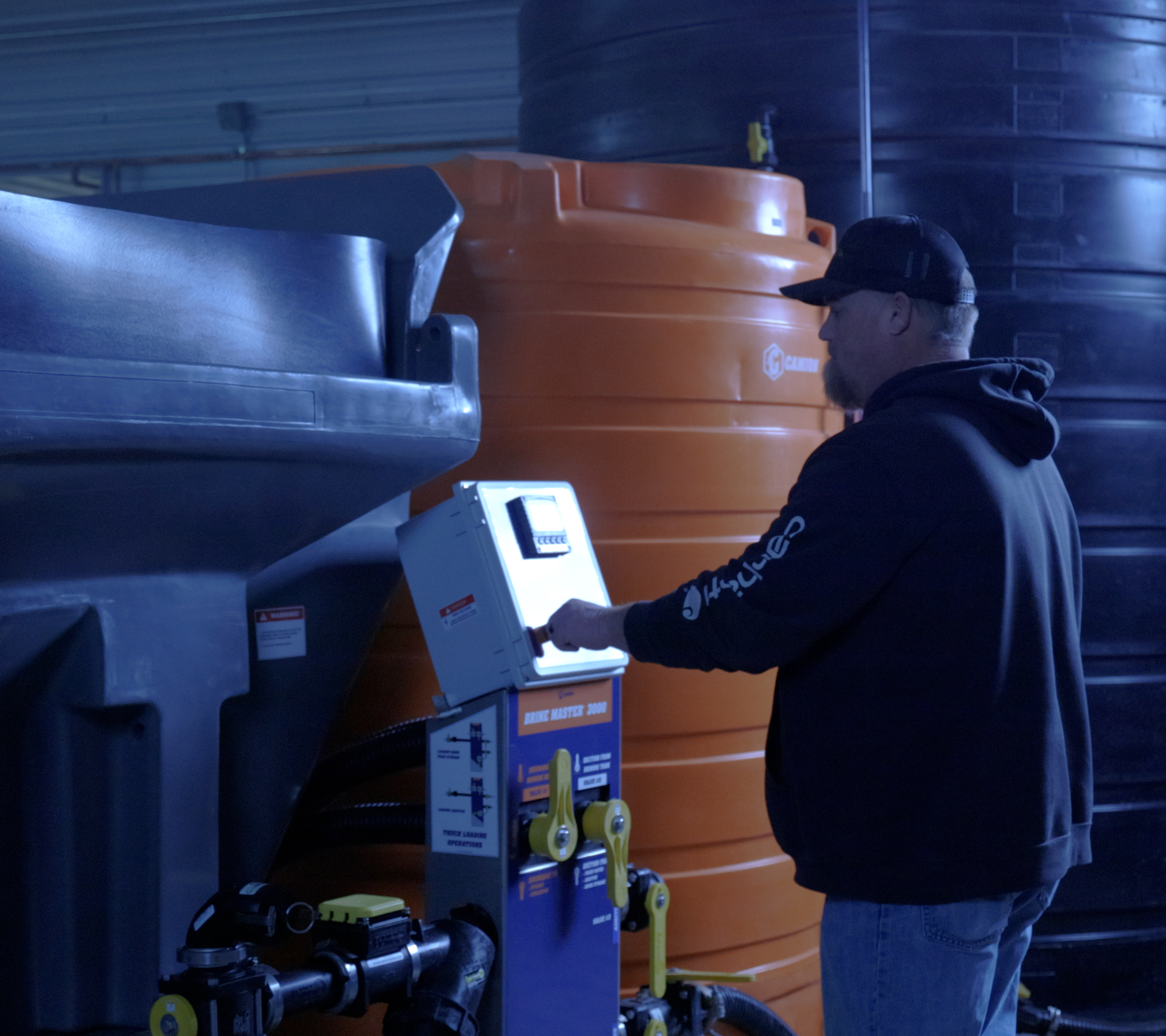

CENTRAL CONTROL STATION

The central control station keeps your valves all in one place to make operating the Brine Master® a breeze.

ALL-IN-ONE COMPLETE UNIT

A complete unit with all the components (including a mixing tank) lets you make brine immediately without having to shop for further items.

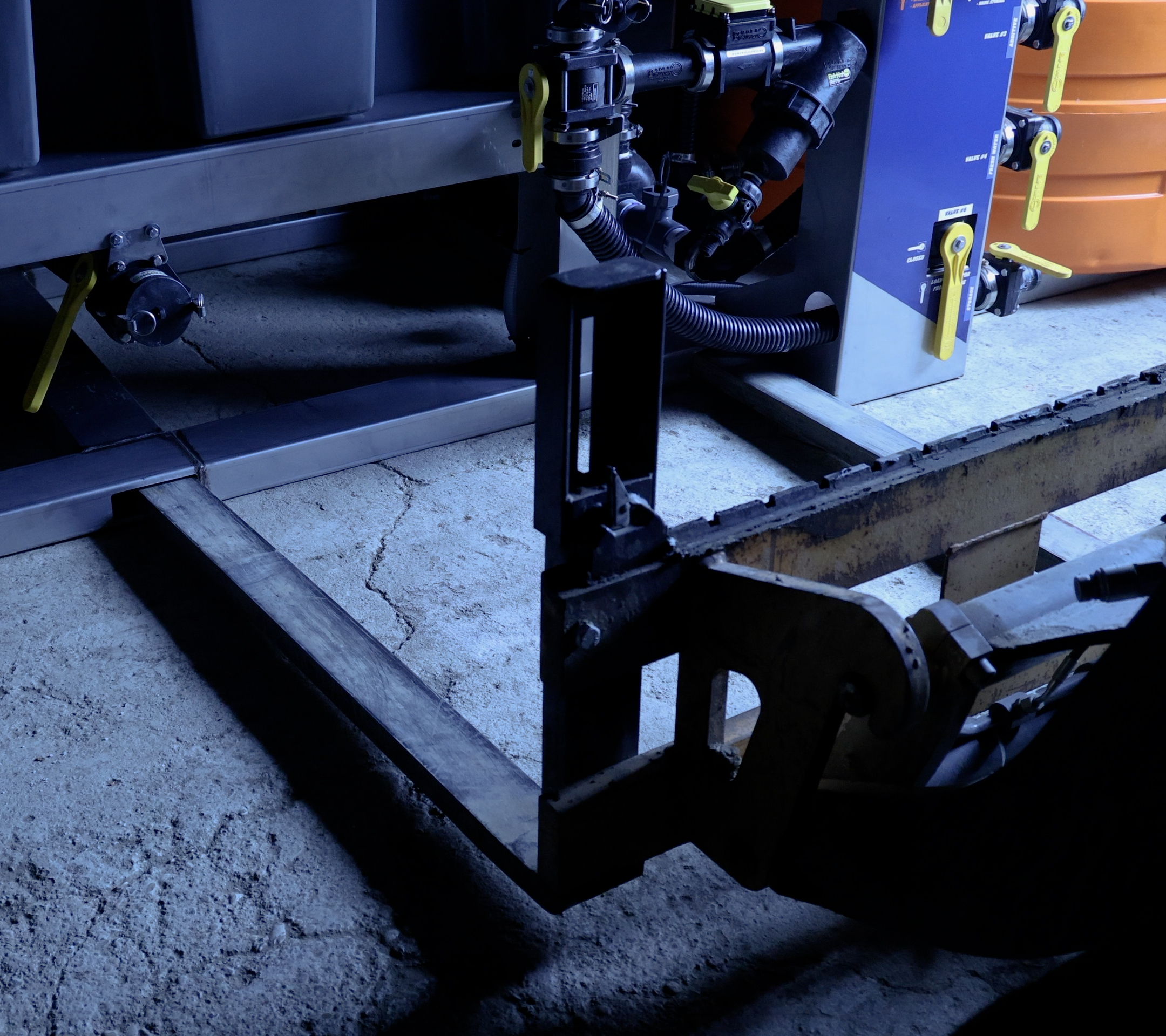

TIME-SAVER™ FORK POINTS

Built-in fork points make your unit easy to move in and out of storage (unit must be empty while being moved).

*POLY & STAINLESS-STEEL CONSTRUCTION

The Brine Master® 3000 is made solely from poly and stainless-steel components to cut out unnecessary corrosion and keep your unit in great shape.

*FLOW METER INCLUDED

The Brine Master® 3000 comes standard with a flow meter so you can easily monitor your flow rate.

*ELECTRONIC SALINITY READER

Getting an electronic salinity reading makes the Brine Master® 3000 convenient to use and saves your crew’s time.

*FULLY DRAINABLE HOPPER

The Brine Master® 3000 is built for easy maintenance, with a fully drainable hopper for hassle-free cleaning.
